GBPC3506T Silicon Bridge Rectifier

GBPC3506T Description

GBPC3506T/W thru GBPC3510T/W Single Phase Glass Passivated Silicon Bridge Rectifier VRRM = 600 V - 1000 V IO = 35 A .

GBPC3506T Features

* Integrally molded heat sink provides low thermal resistance for maximum heat dissipation
* High surge current capability
* Universal 3-way terminals: snap on, wire-around, or P. C board mounting
* High temperature soldering guaranteed: 260⁰C/ 10 seconds at 5 lbs (2.3

📥 Download Datasheet

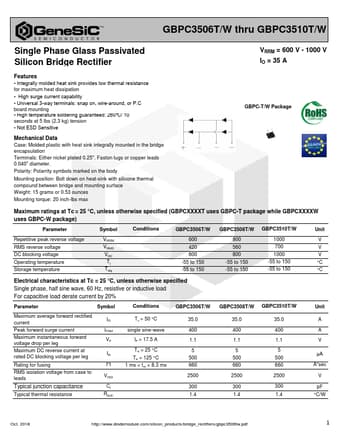

Preview of GBPC3506T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC3506T
Manufacturer
GeneSiC
File Size
643.27 KB
Datasheet
GBPC3506T-GeneSiC.pdf
Description
Silicon Bridge Rectifier
