S85Q, S85K - Silicon Standard Recovery Diode

Name: S85Q
SKU: S85Q-1386903

GeneSiC

The S85Q by GeneSiC is a Silicon Standard Recovery Diode. Below is the official datasheet preview.

Datasheet Details

Part number	S85Q, S85K
Manufacturer	GeneSiC
File Size	785.24 KB
Description	Silicon Standard Recovery Diode
Datasheet	S85K-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: S85Q, S85K. Please refer to the document for exact specifications by model.

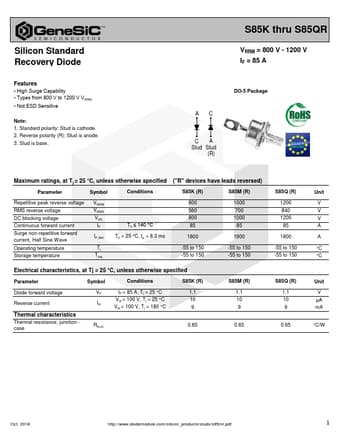

Additional preview pages of the S85Q datasheet.

High Surge Capability.
Types from 800 V to 1200 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S85K thru S85QR VRRM = 800 V - 1200 V IF = 85 A AC DO-5 Package CA Stud Stud (R) Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions S85K (R) S85M (R) Repetitive peak reverse voltage RMS reverse voltage DC blocking v.
