1N5393 - GENERAL PURPOSE PLASTIC RECTIFIER

Product Overview

General Semiconductor

📥 Download Datasheet

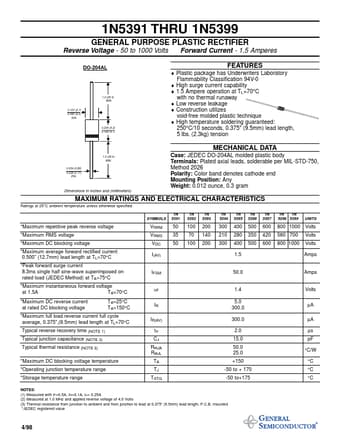

1N5393 GENERAL PURPOSE PLASTIC RECTIFIER by General Semiconductor - Datasheet Preview — Datasheet preview – 1N5393

Datasheet Details

Part number	1N5393
Manufacturer	General Semiconductor
File Size	45.59 KB
Description	GENERAL PURPOSE PLASTIC RECTIFIER
Datasheet	1N5393 Datasheet
Additional preview pages of the 1N5393 datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High surge current capability.
1.5 Ampere operation at TL=70°C with no thermal runaway.
Low reverse leakage.
Construction utilizes void-free molded plastic technique.
High temperature soldering guaranteed: 250°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1).
