BYV26D - GLASS PASSIVATED FAST EFFICIENT RECTIFIER

Datasheet Summary

Features

  • P A T E N T E 0.034 (0.86) 0.028 (0.71) DIA. 1.0 (25.4) MIN. 0.240 (6.1) MAX. 0.150 (3.8) 0.100 (2.5) DIA. 1.0 (25.4) MIN.

📥 Download Datasheet

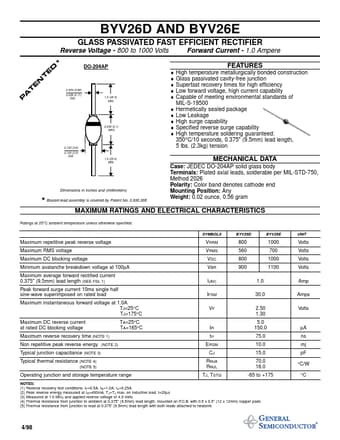

Datasheet preview – BYV26D

Datasheet Details

Part number BYV26D
Manufacturer General Semiconductor
File Size 53.57 KB
Description GLASS PASSIVATED FAST EFFICIENT RECTIFIER
Datasheet download datasheet BYV26D Datasheet
