BYV26DGP, BYV26EGP Glass Passivated Ultrafast Rectifier

BYV26DGP Description

BYV26DGP, BYV26EGP Vishay General Semiconductor Glass Passivated Ultrafast Rectifier SUPERECTIFIER® DO-204AC (DO-15) PRIMARY CHARACTERISTICS IF(AV).

BYV26DGP Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Ultrafast reverse recovery time
* Low forward voltage drop
* Low switching losses, high efficiency
* High forward surge capability
* Meets enviro

BYV26DGP Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-204AC, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BYV26DGP, BYV26EGP. Please refer to the document for exact specifications by model.

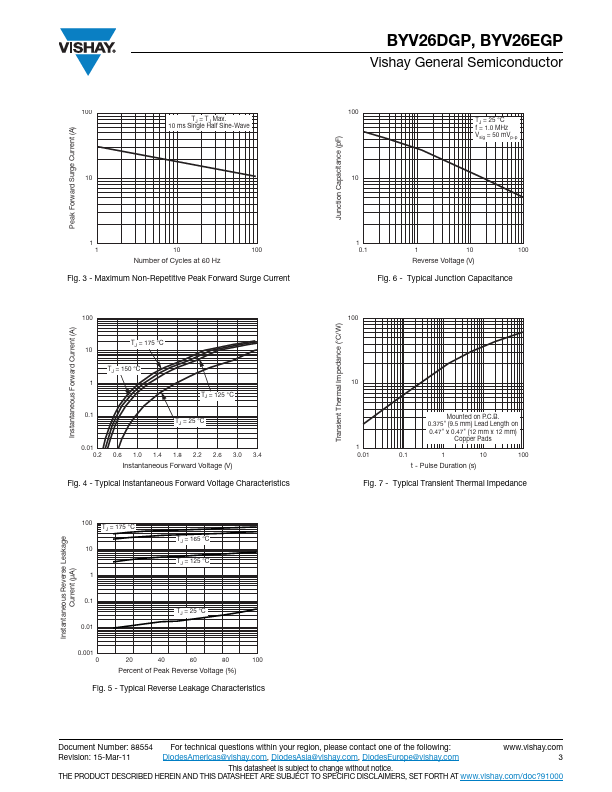

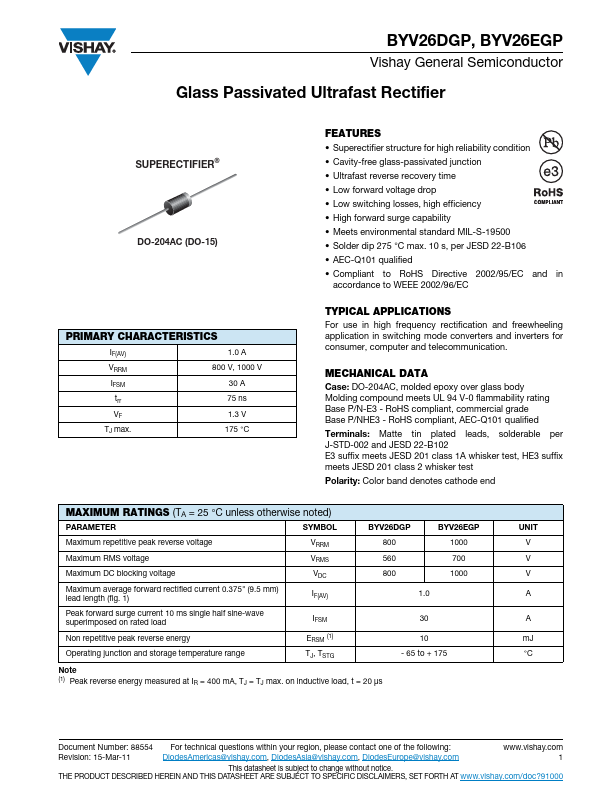

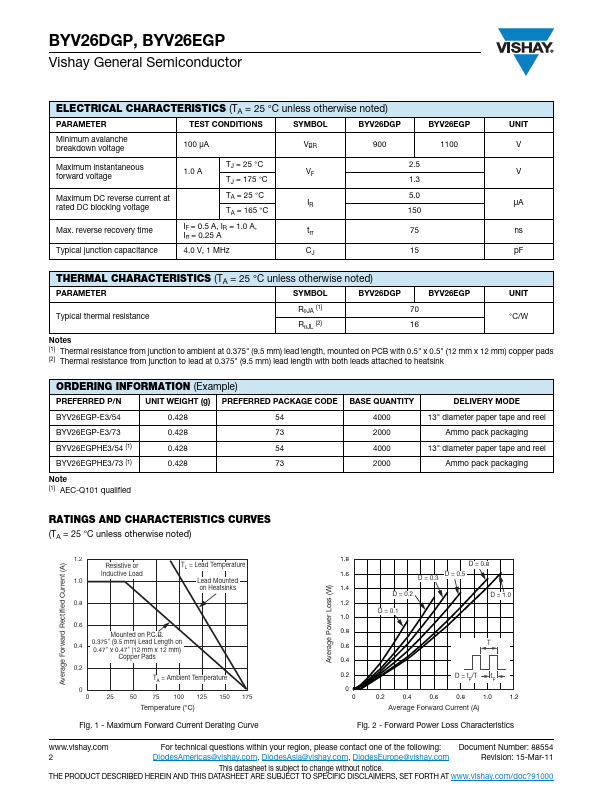

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYV26DGP, BYV26EGP
Manufacturer
Vishay ↗ Siliconix
File Size
76.57 KB
Datasheet
BYV26EGP_VishaySiliconix.pdf
Description
Glass Passivated Ultrafast Rectifier
Note
This datasheet PDF includes multiple part numbers: BYV26DGP, BYV26EGP.
Please refer to the document for exact specifications by model.
