BZW04-256 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

General Semiconductor

📥 Download Datasheet

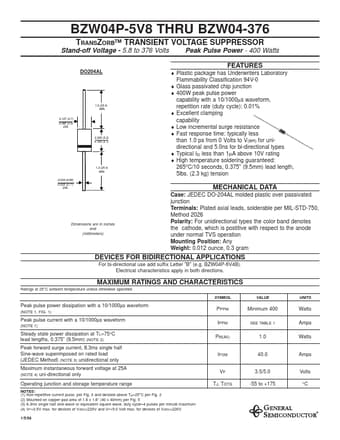

BZW04-256 Datasheet Preview — Preview of BZW04-256 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BZW04-256
Manufacturer: General Semiconductor
File Size: 55.60 KB
Datasheet: BZW04-256_GeneralSemiconductor.pdf
Description: TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

BZW04-256 Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junction.
400W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time: typically less than 1.0 ps from 0 Volts to V(BR) for unidirectional and 5.0ns for bi-directional types.
Typical ID less than 1µA above 10V rati.
