* Dual Silicon Planar Zener Diodes, Common Cathode
* The Zener voltages are graded according to the international E 24 standard. Standard Zener voltage tolerance is ±5%. Replace “C” with “B” for 2% tolerance. Other voltage tolerances and other Zener voltages are available upon reques
DZ23-C18 Datasheet (404.65 KB)
DZ23-C18
General Semiconductor
404.65 KB
Dual common-cathode zener diodes.

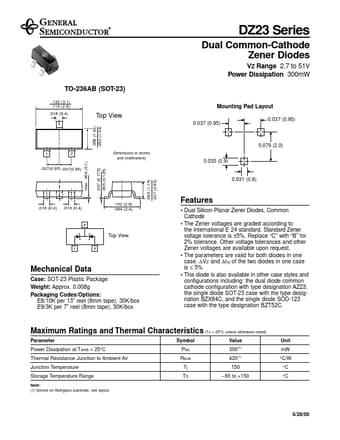

DZ23 Series
Dual Common-Cathode Zener Diodes
VZ Range 2.7 to 51V Power Dissipation 300mW TO-236AB (SOT-23)
.122 (3.1) .110 (2.8) .016 (0.4) 3 .056 (1..
