DZ23-C2V7, DZ23-C2V4 Common cathode Zener diodes

DZ23-C2V7 Description

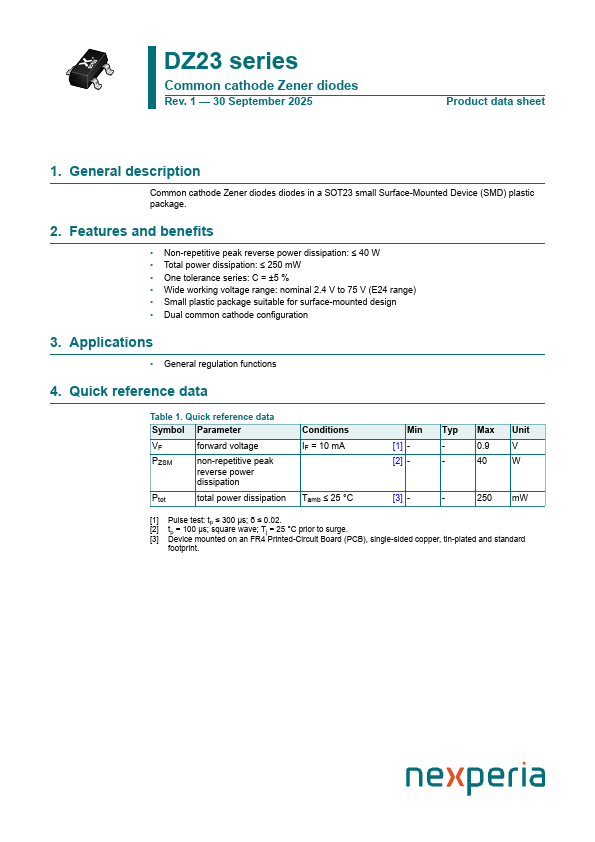

DZ23 series Common cathode Zener diodes Rev.1 * 30 September 2025 Product data sheet 1.General .
Common cathode Zener diodes diodes in a SOT23 small Surface-Mounted Device (SMD) plastic package. Non-repetitive p.

DZ23-C2V7 Features

* Non-repetitive peak reverse power dissipation: ≤ 40 W
* Total power dissipation: ≤ 250 mW
* One tolerance series: C = ±5 %
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Small plastic package suitable for surface-mounted design
* D

DZ23-C2V7 Applications

* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage PZSM non-repetitive peak reverse power dissipation Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 0.9 V [2] - - 4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DZ23-C2V7, DZ23-C2V4. Please refer to the document for exact specifications by model.

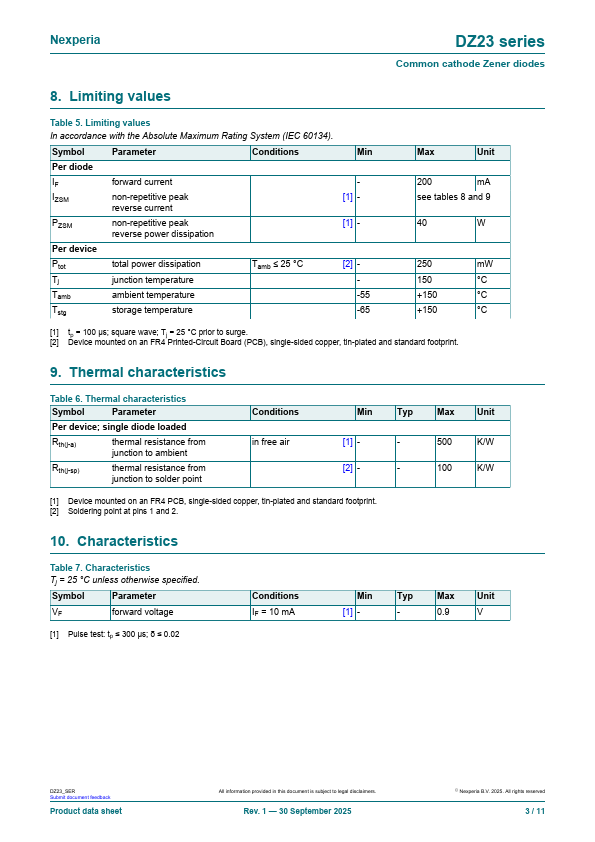

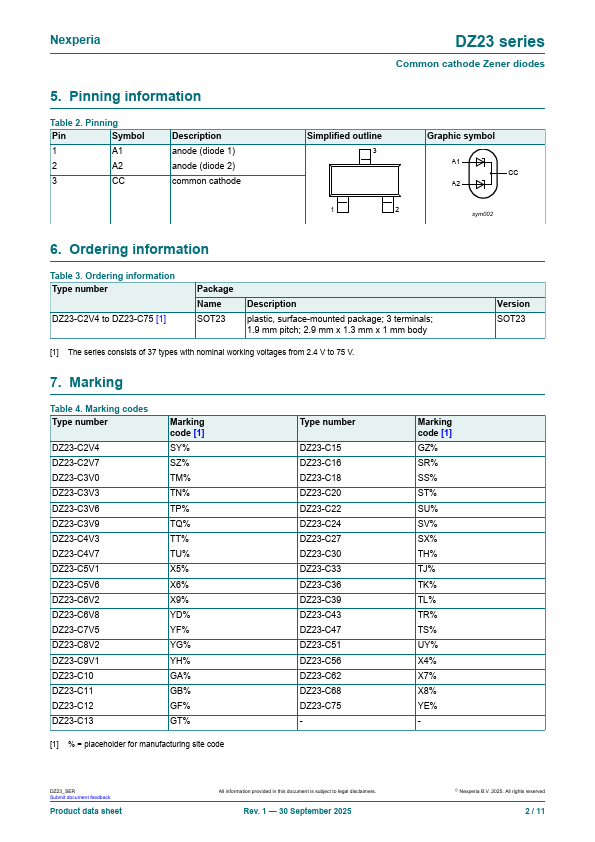

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DZ23-C2V7, DZ23-C2V4
Manufacturer
nexperia ↗
File Size
268.35 KB
Datasheet
DZ23-C2V4-nexperia.pdf
Description
Common cathode Zener diodes
Note
This datasheet PDF includes multiple part numbers: DZ23-C2V7, DZ23-C2V4.
Please refer to the document for exact specifications by model.
