* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive centertap
* Glass passivated chip junctions
* Low power loss
* Low forward voltage, high current capability
* High surge current cap
FEP16GT
General Semiconductor
80.76 KB
Fast efficient plastic rectifier.

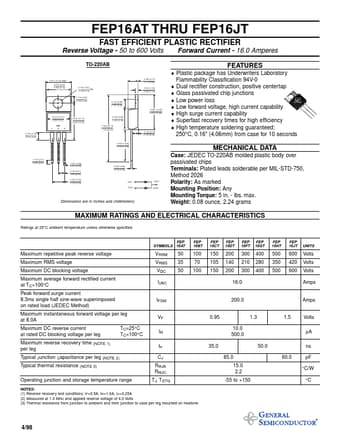

FEP16AT THRU FEP16JT
FAST EFFICIENT PLASTIC RECTIFIER
Reverse Voltage - 50 to 600 Volts
TO-220AB
0.185 (4.70) 0.175 (4.44) 0.154 (3.91) DIA. 0.148 (3..
