GLZ22 Zener Diodes

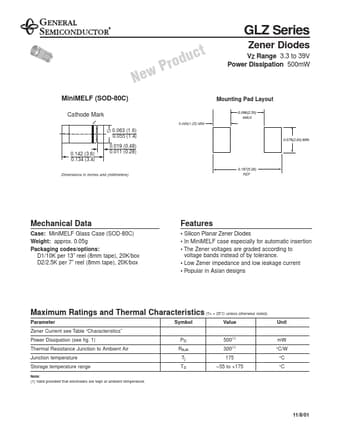

New Product GLZ Series Zener Diodes VZ Range 3.3 to 39V Power Dissipation 500mW MiniMELF (SOD-80C) Cathode Mark 0.142 (3.6) 0.134 (3.4) ∅ 0.063 (1.6) 0.055 (1.4) 0.019 (0.48) 0.011 (0.28) Dimensions in inches and (millimeters) 0.049(1.25) MIN Mounting Pad Layout 0.098(2.50) MAX 0.079(2.00) MIN 0.197(5.00) REF Mechanical Data Case: MiniMELF Glass Case (SOD-80C) Weight: approx. 0.05g Packaging codes/options: D1/10K per 13” reel (8mm tape), 20K/box D2/2.5K per 7” reel (8mm tape), 20K/box.

GLZ22 Features

* Silicon Planar Zener Diodes

* In MiniMELF case especially for automatic insertion

* The Zener voltages are graded according to voltage bands instead of by tolerance.

* Low Zener impedance and low leakage current

* Popular in Asian designs Maximum Ratings an

GLZ3.3-GeneralSemiconductor.pdf

GLZ22 Datasheet Preview — This datasheet PDF includes multiple part numbers: GLZ22, GLZ3.3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GLZ22, GLZ3.3

Manufacturer:

General Semiconductor

File Size:

65.27 KB

Description:

Zener diodes.

Note:

This datasheet PDF includes multiple part numbers: GLZ22, GLZ3.3.
Please refer to the document for exact specifications by model.
