GLZ22B, GLZ2.0A-WON - 500mW SURFACE MOUNT ZENER DIODE

WON-TOP

📥 Download Datasheet

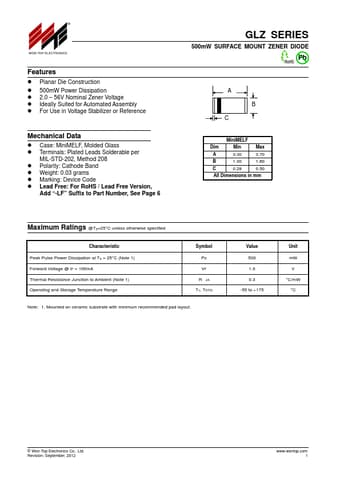

GLZ22B Datasheet Preview — This datasheet PDF includes multiple part numbers: GLZ22B, GLZ2.0A-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GLZ22B, GLZ2.0A-WON
Manufacturer	WON-TOP
File Size	52.70 KB
Description	500mW SURFACE MOUNT ZENER DIODE
Datasheet	GLZ2.0A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: GLZ22B, GLZ2.0A-WON. Please refer to the document for exact specifications by model.

GLZ22B Product details

Features

Planar Die Construction.
500mW Power Dissipation.
2.0.
56V Nominal Zener Voltage.
Ideally Suited for Automated Assembly.
For Use in Voltage Stabilizer or Reference Mechanical Data.
Case: MiniMELF, Molded Glass.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.03 grams.
Marking: Device Code.
Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 6 GLZ SERI.
