GP15G - GLASS PASSIVATED JUNCTION RECTIFIER

General Semiconductor

Datasheet Details

Part number	GP15G
Manufacturer	General Semiconductor
File Size	63.29 KB
Description	GLASS PASSIVATED JUNCTION RECTIFIER

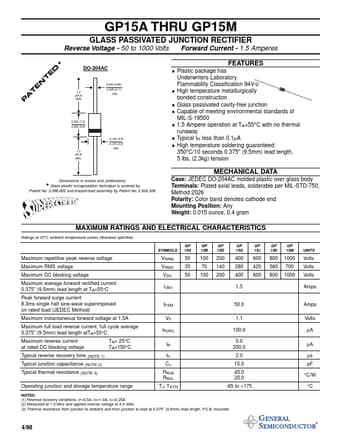

Datasheet	GP15G_GeneralSemiconductor.pdf

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
1.5 Ampere operation at TA=55°C with no thermal runaway.
Typical IR less than 0.1µA.
High temperature soldering guaranteed: 350°C/10 seconds 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension P A T E N.
