GP15M Datasheet - General Semiconductor

GP15M, GLASS PASSIVATED JUNCTION RECTIFIER

GP15A THRU GP15M GLASS PASSIVATED JUNCTION RECTIFIER Reverse Voltage - 50 to 1000 Volts * D DO-204AC 0.034 (0.86) 1.0 (25.4) MIN.0.028 (0.71) DIA.

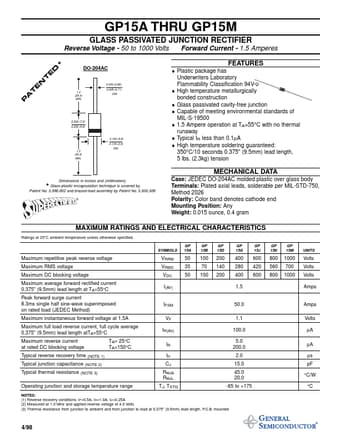

datasheet Preview Page 1 from Datasheet4u.com

GP15M_GeneralSemiconductor.pdf

Preview of GP15M PDF
datasheet Preview Page 2

Datasheet Details

Part number:

GP15M

Manufacturer:

General Semiconductor

File Size:

63.29 KB

Description:

GLASS PASSIVATED JUNCTION RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* High temperature metallurgically bonded construction
* Glass passivated cavity-free junction
* Capable of meeting environmental standards of MIL-S-19500
* 1.5 Ampere operation at
