GS8550xU

Small Signal Transistor

GS8550xU Features

* PNP Silicon Epitaxial Planar Transistors for amplifier applications. Especially suitable for low power output stages such as portable radios in class-B push-pull operation.

* Complementary to GS8050xU

* The “x” in the part number can be B, C or D, depending on the current g

GS8550xU Datasheet (47.87 KB)

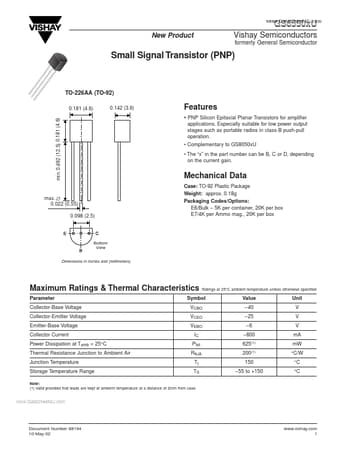

Preview of GS8550xU PDF

Datasheet Details

Part number:

GS8550xU

Manufacturer:

General Semiconductor

File Size:

47.87 KB

Description:

Small signal transistor.
GS8550xU New Product Vishay Semiconductors formerly General Semiconductor Small Signal Transistor (PNP) TO-226AA (TO-92) 0.181 (4.6) min. 0.492 (12.
