GS8551

1.8MHZ Zero-Drift CMOS Rail-to-Rail IO Opamp

GS8551 Features

* Single-Supply Operation from +1.8V ~ +5.5V

* Rail-to-Rail Input / Output

* Gain-Bandwidth Product: 1.8MHz (Typ@25°C)

* Low Input Bias Current: 20pA (Typ@25°C)

* Low Offset Voltage: 30µV (Max@25°C)

* Quiescent Current: 180µA per Amplifier (Typ)

GS8551 General Description

The GS855X amplifier is single/dual/quad supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 1.8MHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. GS855X uses chopper stabilized technique to provide very low offset voltage.

GS8551 Datasheet (620.04 KB)

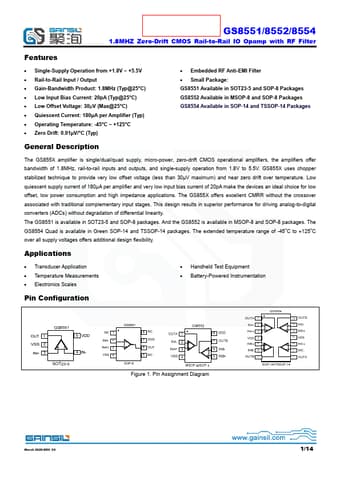

GS8551 Datasheet Preview — Preview of GS8551 PDF

Datasheet Details

Part number:

GS8551

Manufacturer:

GAINSIL

File Size:

620.04 KB

Description:

1.8mhz zero-drift cmos rail-to-rail io opamp.
