MBRB2545CT Datasheet - General Semiconductor

MBRB2545CT SCHOTTKY RECTIFIER

NEW PRODUCT NEW PRODUCT NEW PRODUCT MBRB2535CT THRU MBRB2560CT SCHOTTKY RECTIFIER Reverse Voltage - 35 to 60 Volts Forward Current - 30.0 Amperes 0.320 (8.13) 0.360 (9.14) SEATING -TPLATE 0.095 (2.41) 0.100 (2.54) TO-263AB 0.380 (9.65) 0.420 (10.67) 0.245 (6.22) MIN K 1K2 0.575 (14.60) 0.625 (15.88) 0.090 (2.29) 0.110 (2.79) 0.027 (0.686) 0.037 (0.940) 0.160 (4.06) 0.190 (4.83) 0.045 (1.14) 0.055 (1.40) 0.047 (1.19) 0.055 (1.40) 0.018 (0.46) 0.025 (0.64) 0.080 (2.03) 0.110 (2.79) F.

MBRB2545CT Features

* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0

* Dual rectifier construction, positive center-tap

* Metal silicon junction, majority carrier conduction

* Low power loss, high efficiency

* High current capability, low forward v

MBRB2545CT Datasheet (97.54 KB)

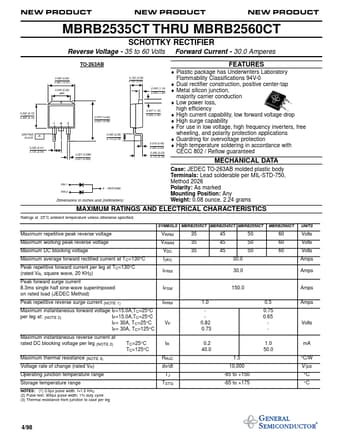

MBRB2545CT Datasheet Preview — Preview of MBRB2545CT PDF

Datasheet Details

Part number:

MBRB2545CT

Manufacturer:

General Semiconductor

File Size:

97.54 KB

Description:

Schottky rectifier.
