MBRB2515L SWITCHMODE Power Rectifier

MBRB2515L Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MBRB2515L/D ™ Data Sheet SWITCHMODE™ Power Designer's Rectifier MBRB2515L Motorola P.

MBRB2515L Features

* epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use in low voltage, high frequency switching power supplies, free wheeling diodes, and polarity protection diodes. These state
* of
* the
* art devices have the following features:

MBRB2515L Applications

* Surface mount board layout is a critical portion of the total design. The footprint for the semiconductor packages must be the correct size to insure proper solder connection interface 0.70 17.78 between the board and the package. With the correct pad geometry, the packages will self align when sub

📥 Download Datasheet

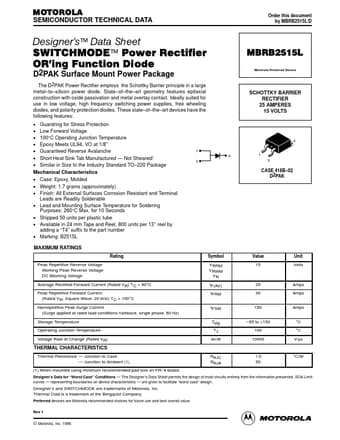

Preview of MBRB2515L PDF
