MBRB2535CTL Power Rectifier

MBRB2535CTL Description

MOTOROLA Designer's SEMICONDUCTOR TECHNICAL DATA Order this document by MBRB2535CTL/D ™ Data Sheet SWITCHMODE™ Power D2PAK Surface Mount Power Pac.

MBRB2535CTL Features

* epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use in low voltage, high frequency switching power supplies, free wheeling diodes, and polarity protection diodes. These state
* of
* the
* art devices have the following features:

MBRB2535CTL Applications

* Surface mount board layout is a critical portion of the total design. The footprint for the semiconductor packages must be the correct size to insure proper solder connection interface 0.70 17.78 between the board and the package. With the correct pad geometry, the packages will self align when sub

📥 Download Datasheet

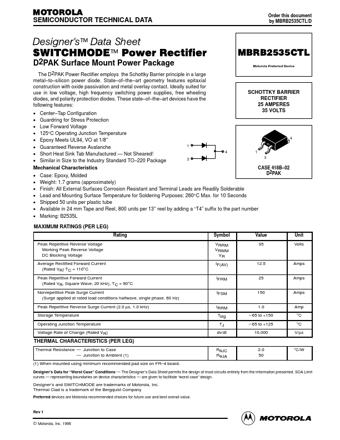

Preview of MBRB2535CTL PDF
