SA14 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

SA14 Description

SA5.0 THRU SA170CA TRANSZORB™ TRANSIENT VOLTAGE SUPPRESSOR Stand-off Voltage - 5.0 to 170 Volts DO-204AC Peak Pulse Power - 500 Watts .

SA14 Features

* 0.034 (0.86) 1.0 (25.4) MIN. 0.028 (0.71) DIA. 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN.
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated junction
* 500W peak pulse power surge capability with a

SA14 Applications

* For bi-directional use C or CA Suffix. (e. g. SA5.0C, SA170CA). Electrical characteristics apply in both directions. MAXIMUM RATINGS AND CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified SYMBOL VALUE UNITS Peak pulse power dissipation with a 10/1000µs waveform (NOTE

📥 Download Datasheet

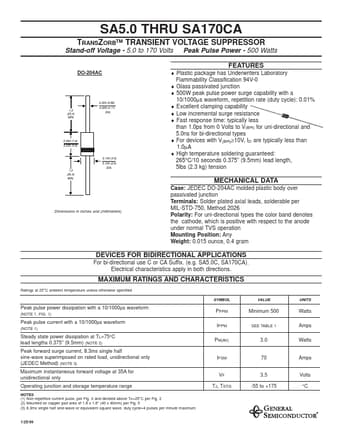

Preview of SA14 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA14
Manufacturer
General Semiconductor
File Size
86.89 KB
Datasheet
SA14_GeneralSemiconductor.pdf
Description
TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
