SA1458 - General purpose operational amplifier

Product Overview

Philips

Datasheet Details

Part number	SA1458
Manufacturer	Philips
File Size	100.91 KB
Description	General purpose operational amplifier
Datasheet	SA1458 Datasheet

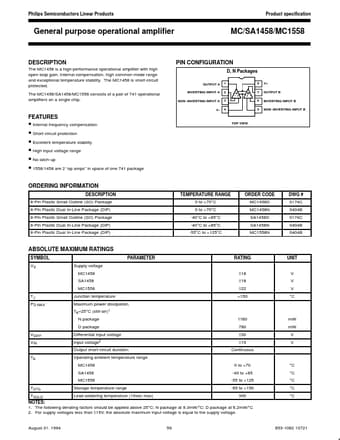

Additional preview pages of the SA1458 datasheet.

Product details

Description

The MC1458 is a high-performance operational amplifier with high open-loop gain, internal compensation, high common-mode range and exceptional temperature stability. 1 2 3 4 A + B + 8 7 6 5 V+ OUTPUT B INVERTING INPUT B NON -INVERTING INPUT B

Features

Internal frequency compensation.
Short-circuit protection.
Excellent temperature stability.
High input voltage range.
No latch-up.
1558/1458 are 2 “op amps” in space of one 741 package.
