SA1466G, SA1466, 5-CH CD PLAYER OPU DRIVER

SA1466 5-CH CD PLAYER OPU DRIVER WITH A TRAY DRIVER AND 2 ADJUSTABLE REGULATORS .
The SA1466 is a five-channel BTL driver IC for driving the motors and actuators in products such as CD drivers.

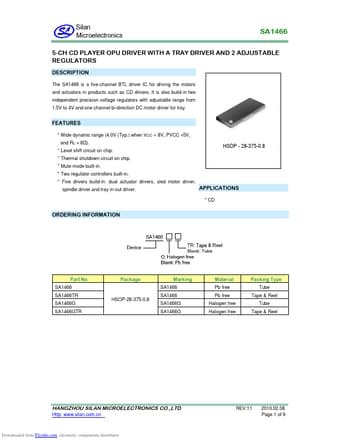

datasheet Preview Page 1 from Datasheet4u.com

SA1466-SilanMicroelectronics.pdf

SA1466G Datasheet Preview — This datasheet PDF includes multiple part numbers: SA1466G, SA1466. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SA1466G, SA1466

Manufacturer:

Silan Microelectronics

File Size:

287.31 KB

Description:

5-CH CD PLAYER OPU DRIVER

Note:

This datasheet PDF includes multiple part numbers: SA1466G, SA1466.
Please refer to the document for exact specifications by model.

Features

* Wide dynamic range (4.0V (Typ. ) when VCC = 8V, PVCC =5V, and RL = 8Ω).
* Level shift circuit on chip. HSOP - 28-375-0.8
* Thermal shutdown circuit on chip.
* Mute mode built-in.
* Two regulator controllers built-in.
* Five drivers build-in: dual actuator drivers, sled

Applications

* CD ORDERING INFORMATION Part No. SA1466 SA1466TR SA1466G SA1466GTR Package HSOP-28-375-0.8 Marking SA1466 SA1466 SA1466G SA1466G Material Pb free Pb free Halogen free Halogen free Packing Type Tube Tape & Reel Tube Tape & Reel HANGZHOU SILAN MICROELECTRONICS CO. ,LTD Http
