SA1469PH - 4-Ch BTL Driver

Product Overview

SA1469PH 4-Ch BTL Driver by SL - Datasheet Preview — Datasheet preview – SA1469PH

Datasheet Details

Part number	SA1469PH
Manufacturer	SL
File Size	746.40 KB
Description	4-Ch BTL Driver
Datasheet	SA1469PH Datasheet

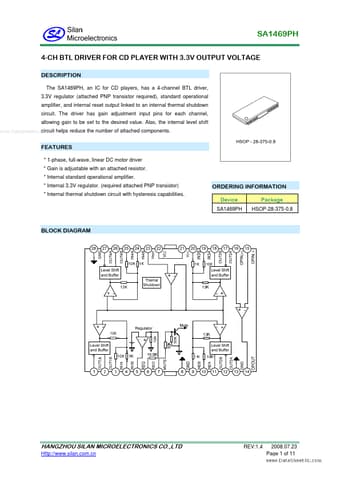

Additional preview pages of the SA1469PH datasheet.

Product details

Description

The SA1469PH, an IC for CD players, has a 4-channel BTL driver, 3.3V regulator (attached PNP transistor required), standard operational amplifier, and internal reset output linked to an internal thermal shutdown circuit.

Features

1-phase, full-wave, linear DC motor driver.
Gain is adjustable with an attached resistor.
Internal standard operational amplifier.
Internal 3.3V regulator. (required attached PNP transistor).
Internal thermal shutdown circuit with hysteresis capabilities.
