SMZG3809A SURFACE MOUNT ZENER DIODE

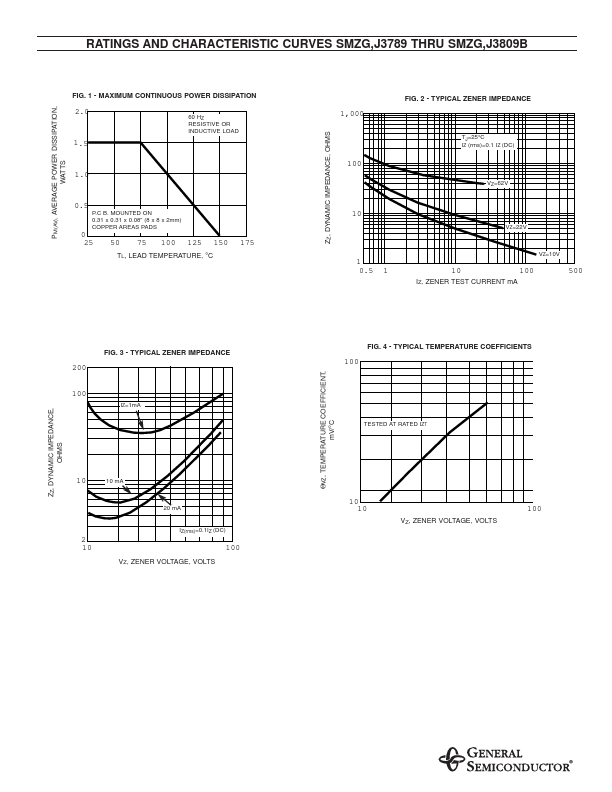

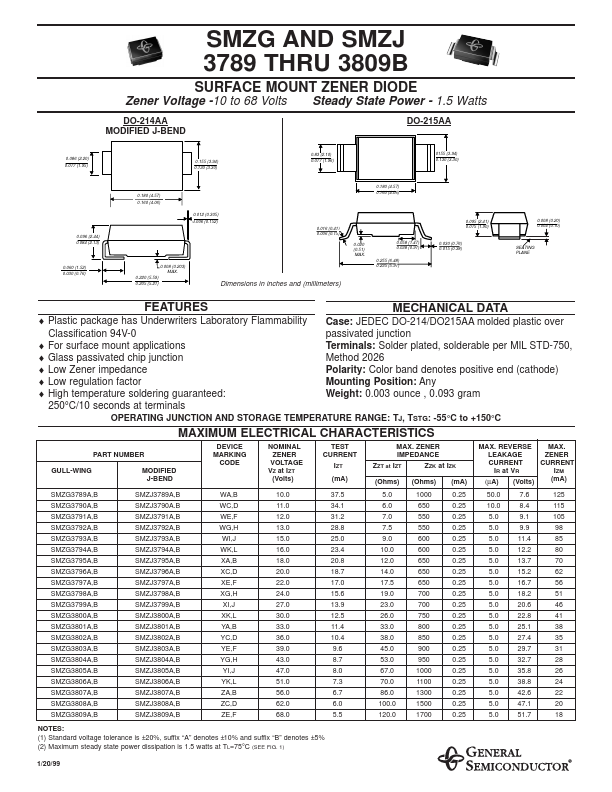

SMZG AND SMZJ 3789 THRU 3809B SURFACE MOUNT ZENER DIODE Zener Voltage -10 to 68 Volts DO-214AA MODIFIED J-BEND 0.086 (2.20) 0.077 (1.95) 0.83 (2.10) 0.077 (1.96) Steady State Power - 1.5 Watts DO-215AA 0.155 (3.94) 0.130 (3.30) 0155 (3.94) 0.130 (3.30) 0.180 (4.57) 0.160 (4.06) 0.012 (0.305) 0.006 (0.152) 0.096 (2.44) 0.084 (2.13) 0.016 (0.41) 0.006 (0.15) 0.020 (0.51) MAX. 0.180 (4.57) 0.160 (4.06) 0.095 (2.41) 0.075 (1.90) 0.008 (0.20) 0.004 (0.10) 0.058 (1.47) 0.038 (0.97) 0.255 (6.48.

SMZG3809A Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

* For surface mount applications

* Glass passivated chip junction

* Low Zener impedance

* Low regulation factor

* High temperature soldering guaranteed: 250°C/10 seconds at

SMZG3809A Datasheet (47.29 KB)

SMZG3809A Datasheet Preview — Preview of SMZG3809A PDF

Datasheet Details

Part number:

SMZG3809A

Manufacturer:

General Semiconductor

File Size:

47.29 KB

Description:

Surface mount zener diode.
