ZMM5230 - ZENER DIODES

General Semiconductor

📥 Download Datasheet

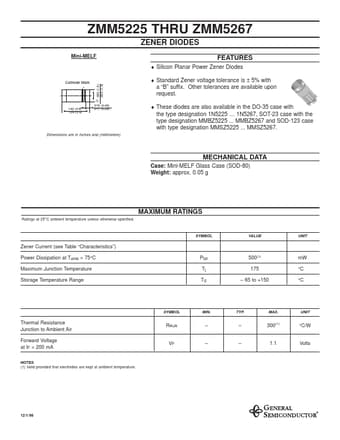

ZMM5230 Datasheet Preview — Preview of ZMM5230 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ZMM5230
Manufacturer: General Semiconductor
File Size: 75.04 KB
Datasheet: ZMM5230_GeneralSemiconductor.pdf
Description: ZENER DIODES

ZMM5230 Product details

Features

Silicon Planar Power Zener Diodes.
Standard Zener voltage tolerance is ± 5% with a “B” suffix. Other tolerances are available upon request.
These diodes are also available in the DO-35 case with the type designation 1N5225 … 1N5267, SOT-23 case with the type designation MMBZ5225 MMBZ5267 and SOD-123 case with type designation MMSZ5225 MMSZ5267. .142 (3.6) .134 (3.4) .019 (0.48) .011 (0.28) Dimensions are in inches and (millimeters) ∅ .063 (1.6) .055 (1.4) Cath.
