ZMM5232B, ZMM5221B-WON - 500mW SURFACE MOUNT ZENER DIODE

WON-TOP

📥 Download Datasheet

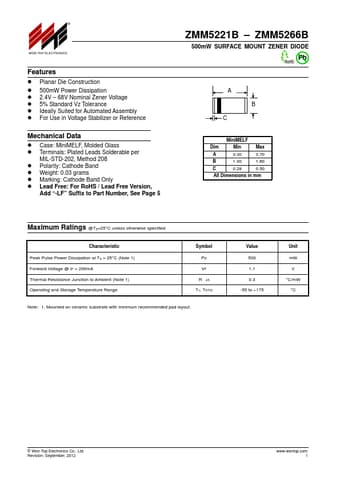

ZMM5232B Datasheet Preview — This datasheet PDF includes multiple part numbers: ZMM5232B, ZMM5221B-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ZMM5232B, ZMM5221B-WON
Manufacturer: WON-TOP
File Size: 44.66 KB
Datasheet: ZMM5221B-WON-TOP.pdf
Description: 500mW SURFACE MOUNT ZENER DIODE
Note: This datasheet PDF includes multiple part numbers: ZMM5232B, ZMM5221B-WON.
Please refer to the document for exact specifications by model.

ZMM5232B Product details

Features

Planar Die Construction.
500mW Power Dissipation.
2.4V.
68V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Ideally Suited for Automated Assembly.
For Use in Voltage Stabilizer or Reference Mechanical Data.
Case: MiniMELF, Molded Glass.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.03 grams.
Marking: Cathode Band Only.
Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffi.
