EDF1CS

MINIATURE GLASS PASSIVATED FAST EFFICIENT SURFACE MOUNT BRIDGE RECTIFIER

EDF1CS Features

* 0.047 (1.20) 0.040 (1.02) 0.404 (10.3) 0.386 (9.80) 0.335 (8.51) 0.320 (8.13) 45o 0.255 (6.5) 0.245 (6.2)

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

* This series is UL listed under Recognized Component Index, file number E54214

* Glass

EDF1CS Datasheet (84.38 KB)

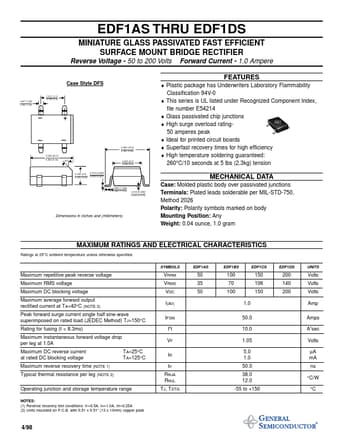

Preview of EDF1CS PDF

Datasheet Details

Part number:

EDF1CS

Manufacturer:

General

File Size:

84.38 KB

Description:

Miniature glass passivated fast efficient surface mount bridge rectifier.
EDF1AS THRU EDF1DS MINIATURE GLASS PASSIVATED FAST EFFICIENT SURFACE MOUNT BRIDGE RECTIFIER Reverse Voltage - 50 to 200 Volts Case Style DFS 0.205 (5..
