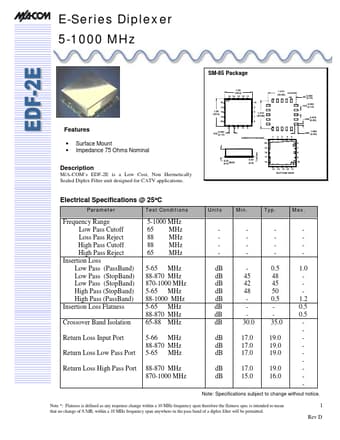

* Surface Mount Impedance 75 Ohms Nominal Description M/A-COM’s EDF-2E is a Low Cost, Non Hermetically Sealed Diplex Filter unit designed for CATV applications. Electrical Specifications @ 25°C Parameter Test Conditions Units Min. Typ. Max. Frequency Range Low Pass Cutoff Loss P
EDF-2E
Tyco Electronics
77.42 KB
E-series diplexer 5-1000 mhz.
E-Series Diplexer 5-1000 MHz
SM-85 Package
1.20 (30.0) 15 14 13 12 11 16 17 1.20 18 (30.0) 19 20 EC 10 9 8 6 1 0.202 16X (5.13) 2 3 4 5 20X ORIENTATIO.
