MMBZ4622 - ZENER DIODES

Datasheet Summary

Features

  • ¨ Silicon Planar Low Noise Zener Diodes ¨ 350mW high quality voltage regulator designed for low leakage, low current and low noise.

📥 Download Datasheet

Datasheet preview – MMBZ4622

Datasheet Details

Part number MMBZ4622
Manufacturer General
File Size 94.84 KB
Description ZENER DIODES
Datasheet download datasheet MMBZ4622 Datasheet
Additional preview pages of the MMBZ4622 datasheet.

📁 Similar Datasheet

  • MMBZ10VA - 300W Surface Mount Transient Voltage Suppressors (CITC)
  • MMBZ10VAL - 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors (ON)
  • MMBZ10VAL - ESD protection diode (nexperia)
  • MMBZ10VAL - 24W AND 40W PEAK POWER DUAL SURFACE MOUNT TVS (Diodes)
  • MMBZ10VAL - Low capacitance unidirectional double ESD protection diodes (NXP)
  • MMBZ10VAL - ElectroStatic Discharge Protection Devices (SEMIWILL)
  • MMBZ10VALAQ - 24W AND 40W PEAK POWER DUAL SURFACE-MOUNT TVS (DIODES)
  • MMBZ10VALT1 - 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors (ON)
  • MMBZ12VA - 300W Surface Mount Transient Voltage Suppressors (CITC)
  • MMBZ12VAL - 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors (ON)
Other Datasheets by General

Full PDF Text Transcription

Click to expand full text

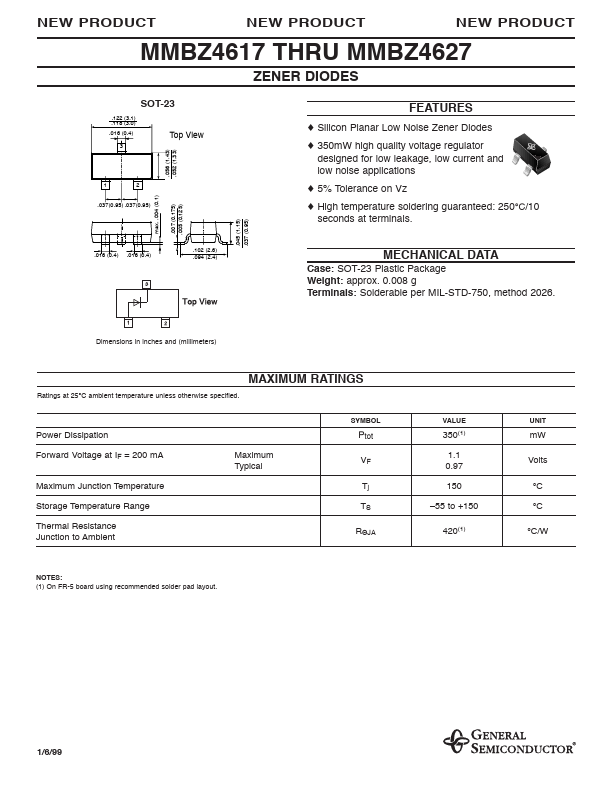

NEW PRODUCT NEW PRODUCT NEW PRODUCT MMBZ4617 THRU MMBZ4627 ZENER DIODES SOT-23 .122 (3.1) .118 (3.0) .016 (0.4) 3 .056 (1.43) .052 (1.33) FEATURES ¨ Silicon Planar Low Noise Zener Diodes ¨ 350mW high quality voltage regulator designed for low leakage, low current and low noise applications ¨ 5% Tolerance on VZ ¨ High temperature soldering guaranteed: 250¡C/10 seconds at terminals. Top View 1 2 max. .004 (0.1) .007 (0.175) .005 (0.125) .037(0.95) .037(0.95) .016 (0.4) .016 (0.4) .102 (2.6) .094 (2.4) .045 (1.15) .037 (0.95) MECHANICAL DATA Case: SOT-23 Plastic Package Weight: approx. 0.008 g Terminals: Solderable per MIL-STD-750, method 2026. Dimensions in inches and (millimeters) MAXIMUM RATINGS Ratings at 25¡C ambient temperature unless otherwise specified.
