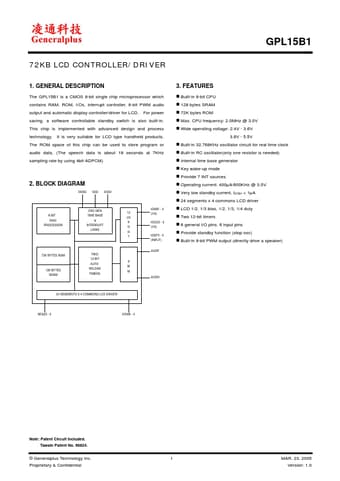

GPL15B1 Datasheet, Controller/driver, Generalplus

GPL15B1 Features

• Controller/driver
• Built-in 8-bit CPU
• 128 bytes SRAM
• 72K bytes ROM
• Max. CPU frequency: 2.0MHz @ 3.0V
• Wide operating voltage: 2.4V - 3.6V 3.6V - 5.5V

PDF File Details

Part number:

GPL15B1

Manufacturer:

Generalplus

File Size:

184.72kb

Download:

📄 Datasheet

Description:

Lcd controller/driver. The GPL15B1 is a CMOS 8-bit single chip microprocessor which contains RAM, ROM, I/Os, interrupt controller, 8-bit PWM audio output an

TAGS

GPL15B1

Generalplus
