GS1522

HDTV Serial Digital Serializer

GS1522 Features

* SMPTE 292M compliant

* 20:1 parallel to serial conversion

* NRZ(I) encoder & SMPTE scrambler with selectable bypass

* NRZ to NRZ(I) serial data conversion

* 1.485Gb/s and 1.485/1.001Gb/s operation

* lock detect output

* selectable DUAL or QUA

GS1522 General Description

The GS1522 is a monolithic bipolar integrated circuit designed to serialize SMPTE 274M and SMPTE 260M bit parallel digital signals. This device performs the following functions:

*

*

*

*

* Sync word mapping for 8-bit/10-bit operation. Parallel to Serial convers.

GS1522 Datasheet (457.17 KB)

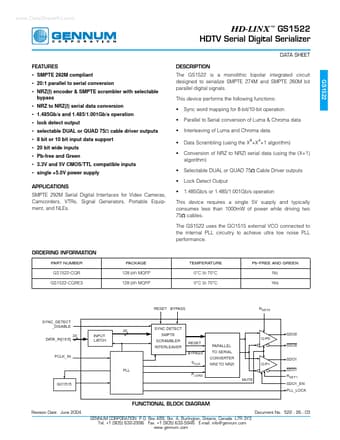

Preview of GS1522 PDF

Datasheet Details

Part number:

GS1522

Manufacturer:

Gennum Corporation

File Size:

457.17 KB

Description:

Hdtv serial digital serializer.
