GS1508-CKA HDTV Cable Driver

The GS1508 is a first generation very high speed bipolar integrated circuit designed to drive two 75Ω co-axial cables. The GS1508 is a SMPTE 292M compliant cable driver that directly interfaces with other Gennum HDTV devices and can also be used as a general purpose high speed cable driver. The GS15.

GS1508-CKA Features

* SMPTE 292M compliant

* dual cable driving outputs optimized for driving data up to 1.485Gb/s

* ±7% tolerance output

* >17dB output return loss

* minimum external components

* seamless interface with the HD-LINX™ family of products

* low power

GS1508-CKA_ETC.pdf

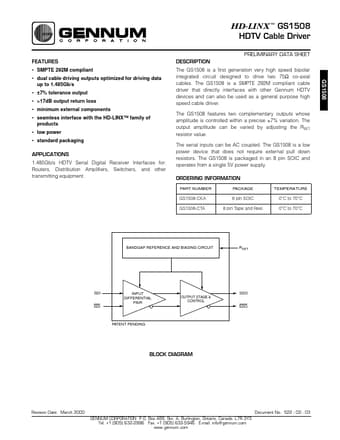

GS1508-CKA Datasheet Preview — Preview of GS1508-CKA PDF

Datasheet Details

Part number:

GS1508-CKA

Manufacturer:

ETC

File Size:

115.50 KB

Description:

Hdtv cable driver.
