GS1501

HDTV Serial Digital Formatter

GS1501 Features

* SMPTE 292M compliant

* NRZ(I) encoding

* SMPTE 292M scrambler with BYPASS option

* internal FIFOs for ANC data insertion (1024 Bytes on Y and C channels)

* selectable TRS insertion

* selectable line number insertion

* selectable line based CR

GS1501 General Description

The GS1501 HDTV Serial Digital Formatter formats the HDTV Luma and Chroma data according to SMPTE 292M prior to serialization by the GS1522 HDTV Serializer. The GS1501 optionally inserts TRS and line number signals based on externally supplied H, V and F signals. The device also allows the insertion.

GS1501 Datasheet (211.09 KB)

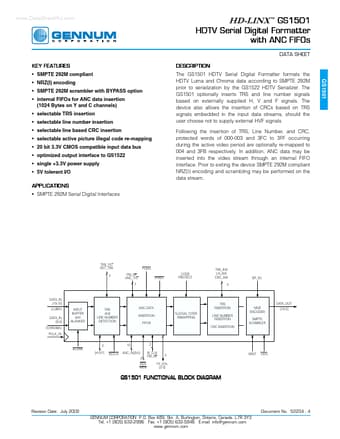

Preview of GS1501 PDF

Datasheet Details

Part number:

GS1501

Manufacturer:

Gennum Corporation

File Size:

211.09 KB

Description:

Hdtv serial digital formatter.
