GB4550 Datasheet, Buffer/clamp, Gennum

GB4550 Features

• Buffer/clamp
• adjustable clamp level from -5.5 V to +5.5 V at ±10 V supplies.
• ultra low differential gain (0.02% typ.) and differential phase (0.03° typ.)
• wideband unity

PDF File Details

Part number:

GB4550

Manufacturer:

Gennum

File Size:

165.98kb

Download:

📄 Datasheet

Description:

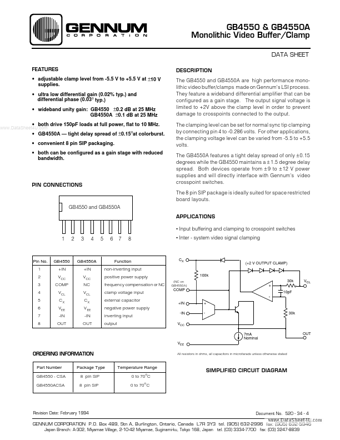

Monolithic video buffer/clamp. The GB4550 and GB4550A are high performance monolithic video buffer/clamps made on Gennum's LSI process. They feature a wideband diff

GB4550 Application

• Applications the clamping voltage level can be varied from -5.5 to +5.5 volts. The GB4550A features a tight delay spread of only ± 0.15 degrees whi
