GF9103, Over-Sampling Color Space Converter

www.DataSheet4U.com MultiGEN ™ GF9103 Over-Sampling Color Space Converter for Video Monitoring DATA SHEET .
The GF9103 is specifically designed to simplify conversions from 4:2:2 component digital video to analog RGB or analog YCBCR component video.

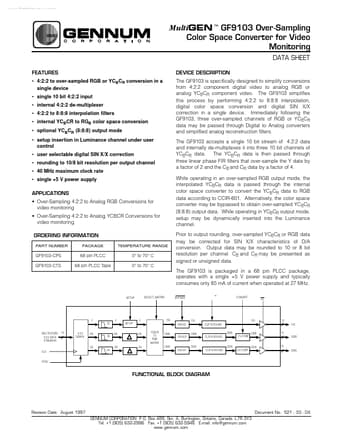

datasheet Preview Page 1 from Datasheet4u.com

GF9103_Gennum.pdf

GF9103 Datasheet Preview — Preview of GF9103 PDF

Datasheet Details

Part number:

GF9103

Manufacturer:

Gennum

File Size:

448.00 KB

Description:

Over-Sampling Color Space Converter

Features

* 4:2:2 to over-sampled RGB or YCBCR conversion in a single device
* single 10 bit 4:2:2 input
* internal 4:2:2 de-multiplexer
* 4:2:2 to 8:8:8 interpolation filters
* internal YCBCR to RGB color space conversion
* optional YCBCR (8:8:8) output mode

Applications

* Over-Sampling 4:2:2 to Analog RGB Conversions for video monitoring
* Over-Sampling 4:2:2 to Analog YCBCR Conversions for video monitoring ORDERING INFORMATION PART NUMBER GF9103-CPS GF9103-CTS PACKAGE 68 pin PLCC 68 pin PLCC Tape TEMPERATURE RANGE 0° to 70° C 0° to 70° C DEVICE DE
