GF9105A Datasheet - Gennum

GF9105A - Component Digital Transcoder

PIN NO.

11, 20, 51, 60, 80, 101, 121, 141, 150 4, 7, 10, 14, 21, 43, 52, 61, 63, 72, 81, 88, 96, 100, 105, 113, 120, 129, 138, 140, 149, 158 147, 148, 151-157, 159, 160, 1, 2 SYMBOL VDD GND +5 V ±5% power supply.

DESCRIPTION Ground.

P112..0 Data Port No.

1: Depending on device configuration, P112

GF9105A Features

* drop in replacement for the GF9105 with lower power and increased functionality

* new mode for HVF output

* new mode for using low frequency clocks with nonmultiplexed I/O data

* optimized HOST IF control signals for ensured shared bus compatibility

* multip

GF9105A_Gennum.pdf

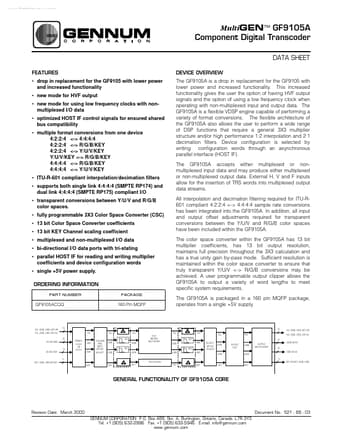

Preview of GF9105A PDF
GF9105A Datasheet Preview Page 2 GF9105A Datasheet Preview Page 3

Datasheet Details

Part number:

GF9105A

Manufacturer:

Gennum

File Size:

743.62 KB

Description:

Component digital transcoder.
