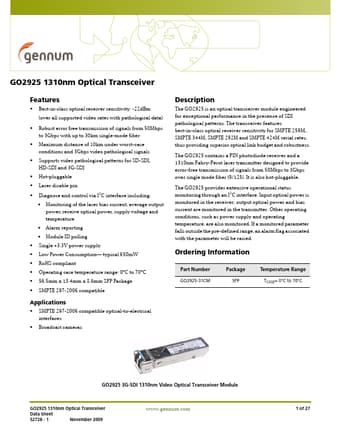

GO2925 1310nm Optical Transceiver
Features
• Best-in-class optical receiver sensitivity: -22dBm (over all supported video rates with pathological data)
• Robust error free transmission of signals from 50Mbps to 3Gbps with up to 30km single-mode fiber
• Maximum distance of 10km under worst-case conditions and 3Gbps video pathological signals
• Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
• Hot-pluggable • Laser disable pin • Diagnose and control via I2C interface including:
Monitoring of the laser bias current, average output power, receive optical power, supply voltage and temperature
Alarm reporting Module ID polling • Single +3.3V power supply • Low Power Consumption— typical 650mW • RoHS compliant • Operating case temperature range: 0°C to 70°C • 56.
GO2925 Datasheet
