GS9000C - Serial Digital Decoder

Datasheet Summary

Description

The GS9000C is a CMOS integrated circuit specifically designed to deserialize SMPTE 259M serial digital signals at data rates to 370Mb/s.

Features

fully compatible with SMPTE 259M.
decodes 8 and 10 bit serial digital signals for data rates to 370Mb/s.
pin and function compatible with GS9000S, GS9000 and GS9000B.
325mW power dissipation at 270MHz clock rates.
incorporates an automatic standards selection function with the GS9005A Receiver or GS9015A Reclocker.
operates from single +5 or -5 volt supply.
enables an adjustment-free Deserializer system when used with GS9010A and GS.

Datasheet Details

Part number	GS9000C
Manufacturer	Gennum
File Size	106.56 KB
Description	Serial Digital Decoder
Datasheet	GS9000C Datasheet
Additional preview pages of the GS9000C datasheet.

📁 Similar Datasheet

GS9015 - Small Signal Transistors (Vishay)

GS9020 - 2A Sink/Source Bus Termination Regulator (Globaltech)

GS9065A - HD-LINX-R II Multi-Rate SDI Automatic Reclocker (Gennum Corporation)

GS9068A - HD-LINX-R II Multi-Rate Dual Slew-Rate Cable Driver (Gennum Corporation)

GS9075A - HD-LINX-R II Multi-Rate SDI Automatic Reclocker (Gennum Corporation)

GS9090 - GenLINX-R III 270Mb/s Deserializer (Gennum Corporation)

GS9090A - GenLINX-R III 270Mb/s Deserializer (Gennum Corporation)

GS9090B - GenLINX III 270Mb/s Deserializer (Gennum Corporation)

GS9091B - 270Mb/s Deserializer (Semtech)

GS9092 - GenLINX-R III 270Mb/s Serializer (Gennum Corporation)

Full PDF Text Transcription

Click to expand full text

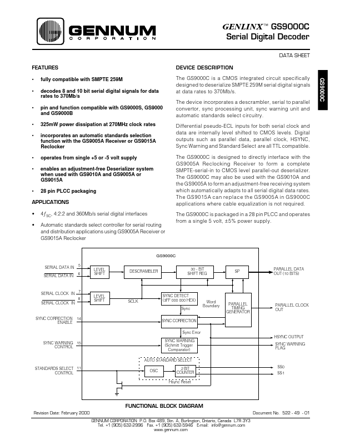

GS9000C GENLINX™ GS9000C Serial Digital Decoder FEATURES • fully compatible with SMPTE 259M • decodes 8 and 10 bit serial digital signals for data rates to 370Mb/s • pin and function compatible with GS9000S, GS9000 and GS9000B • 325mW power dissipation at 270MHz clock rates • incorporates an automatic standards selection function with the GS9005A Receiver or GS9015A Reclocker • operates from single +5 or -5 volt supply • enables an adjustment-free Deserializer system when used with GS9010A and GS9005A or GS9015A • 28 pin PLCC packaging APPLICATIONS • 4ƒSC, 4:2:2 and 360Mb/s serial digital interfaces • Automatic standards select controller for serial routing and distribution applications using GS9005A Receiver or GS9015A Reclocker DATA SHEET DEVICE DESCRIPTION The GS9000C is a CMOS integ
