MS24694 Datasheet - Genuine Aircraft

MS24694 - Structural Screws

Genuine Aircraft Hardware Co. 100 Deg.. Countersunk, Structural Screws, Phillips Drive These are STRUCTURAL fasteners that replace the AN509 Series. Use the MS24694 series to replace AN509 screws of like material and finish. SEE THE CHARTS for desired size numbers. SEE CROSS REFERENCE on next page for Superseding Part Numbers. MS24694 Series Do Not Order By AN509 Numbers HELP WITH THE SELECTION OF PART NUMBERS TENSILE STRENGTH, 125,000 TO 145,000 PSI. (ALLOY STEEL) one ( X ) on head. TENSILE S.

MS24694_GenuineAircraft.pdf

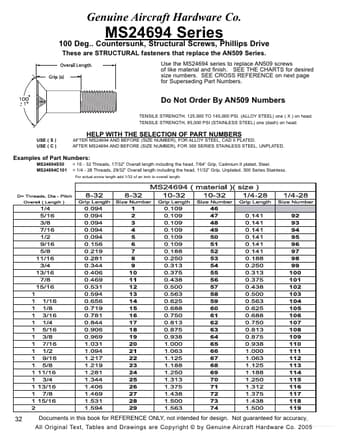

MS24694 Datasheet Preview — Preview of MS24694 PDF

Datasheet Details

Part number:

MS24694

Manufacturer:

Genuine Aircraft

File Size:

290.50 KB

Description:

Structural screws.
