GL2594 - 1.5A STEP-DOWN VOLTAGE REGULATOR

Datasheet Summary

Description

with excellent line and load regulation.

versatile Adjustable output version.

Features

  • include internal frequency compensation and a fixed-frequency oscillator. The GL2594 is high-efficiency replacements for popular three-terminal linear regulators, and is requiring a smaller heatsink or even no heatsink. GL2594 performs well with standard inductors from several manufacturers, and simplifying the design of switch-mode power supplies. GL2594 guarantees 4% tolerance on output voltage within specified input voltages and output load conditions, and 15% on the oscillator frequency. Fea.

📥 Download Datasheet

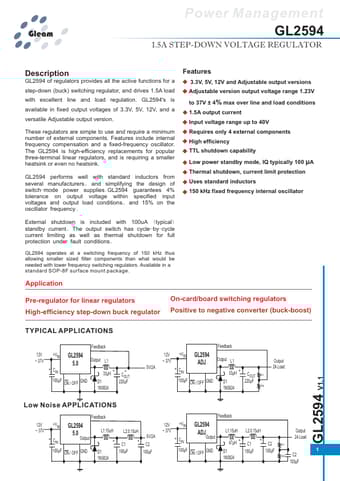

Datasheet preview – GL2594

Datasheet Details

Part number GL2594
Manufacturer Gleam
File Size 100.81 KB
Description 1.5A STEP-DOWN VOLTAGE REGULATOR
Datasheet download datasheet GL2594 Datasheet
Additional preview pages of the GL2594 datasheet.

📁 Similar Datasheet

  • GL25-00 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-01 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-02 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-04 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-06 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-08 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2500 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2501 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2502 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2504 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
Other Datasheets by Gleam
  • GL2595 - 2A STEP-DOWN VOLTAGE REGULATOR
  • GL2595L - 2A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2596 - 3A STEP-DOWN VOLTAGE REGULATOR
  • GL2574A - 1.5A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2575 - 2A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2576 - 3A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2366 - 600mA STEP-DOWN VOLTAGE REGULATOR
  • GL2775 - GL2775 Simple Switcher 2A Step-Down Voltage Regulator & Operational Amplifier

Full PDF Text Transcription

Click to expand full text
Gleam Power Management GL2594 1.5A STEP-DOWN VOLTAGE REGULATOR Description GL2594 of regulators provides all the active functions for a step-down (buck) switching regulator, and drives 1.5A load with excellent line and load regulation. GL2594's is available in fixed output voltages of 3.3V, 5V, 12V, and a versatile Adjustable output version. These regulators are simple to use and require a minimum number of external components. Features include internal frequency compensation and a fixed-frequency oscillator. The GL2594 is high-efficiency replacements for popular three-terminal linear regulators, and is requiring a smaller heatsink or even no heatsink. GL2594 performs well with standard inductors from several manufacturers, and simplifying the design of switch-mode power supplies.
