GL2595L - 2A STEP-DOWN VOLTAGE SWITCHING REGULATORS

Datasheet Summary

Description

The GL2595L series are monolithic IC designed for a stepdown DC/DC converter, and own the ability of driving a 2A load without additional transistor.

It saves board space.

The external shutdown function can be controlled by logic level and then come into standby mode.

Features

  • include a guaranteed ±4% tolerance on output voltage und.

📥 Download Datasheet

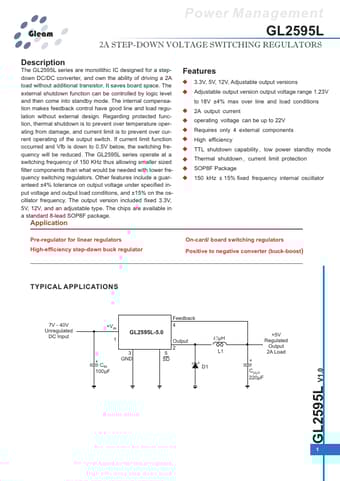

Datasheet preview – GL2595L

Datasheet Details

Part number GL2595L
Manufacturer Gleam
File Size 350.02 KB
Description 2A STEP-DOWN VOLTAGE SWITCHING REGULATORS
Datasheet download datasheet GL2595L Datasheet
Additional preview pages of the GL2595L datasheet.

📁 Similar Datasheet

  • GL25-00 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-01 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-02 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-04 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-06 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL25-08 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2500 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2501 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2502 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • GL2504 - IN-LINE HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
Other Datasheets by Gleam
  • GL2595 - 2A STEP-DOWN VOLTAGE REGULATOR
  • GL2594 - 1.5A STEP-DOWN VOLTAGE REGULATOR
  • GL2596 - 3A STEP-DOWN VOLTAGE REGULATOR
  • GL2574A - 1.5A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2575 - 2A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2576 - 3A STEP-DOWN VOLTAGE SWITCHING REGULATORS
  • GL2366 - 600mA STEP-DOWN VOLTAGE REGULATOR
  • GL2775 - GL2775 Simple Switcher 2A Step-Down Voltage Regulator & Operational Amplifier

Full PDF Text Transcription

Click to expand full text
Gleam Power Management GL2595L 2A STEP-DOWN VOLTAGE SWITCHING REGULATORS Description The GL2595L series are monolithic IC designed for a stepdown DC/DC converter, and own the ability of driving a 2A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come into standby mode. The internal compensation makes feedback control have good line and load regulation without external design. Regarding protected function, thermal shutdown is to prevent over temperature operating from damage, and current limit is to prevent over current operating of the output switch. If current limit function occurred and Vfb is down to 0.5V below, the switching frequency will be reduced.
