G3207

SPDT Analog Switch

G3207 Features

* Low ON-State Resistance 0.75Ω at 4.5V Vcc

* 2.25V to 5.5V Power Supply (V+)

* Isolation in Power-Down mode

* 1.65V to 1.95V Logic Supply (VIO)

* Control Inputs Referenced to VIO

* Low Charge Injection

* Excellent ON Resistance Matching

G3207 General Description

The G3207 is a low on-resistance, SPDT (Single-Pole/Double-Throw) analog switch that operates from a 2.25V to 5.5V supply. The device offers an excellent ON-resistance matching, and low total harmonic distortion (THD) performance. The device is designed for fast switching speeds with the breakbefore.

G3207 Datasheet (151.54 KB)

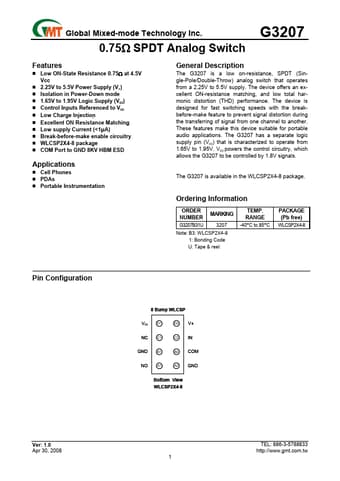

Preview of G3207 PDF

Datasheet Details

Part number:

G3207

Manufacturer:

Global Mixed-mode Technology

File Size:

151.54 KB

Description:

Spdt analog switch.
