G5010

Dual-Low On-Resistance Load Switch

G5010 Features

* Integrated Dual Channel Load Switch

* Input Voltage Range: 0.8-V to 5.5V

* Dual Ultra-low ON-Resistance (10mΩ)

* 6A Continuous Switch Current per channel

* Low Threshold Control Inputs

* Adjustable Slew-rate Control

* Quick Output Discharge T

G5010 General Description

The G5010 is dual N-channel MOSFET power switch designed for high-sideload-switching applications, and the device has a typical RDS(ON) of 10m and the output current is limited to 6A. Each switch is independently controlled by an on/off input (EN1, EN2), which is capable of interfacing directly with.

G5010 Datasheet (68.21 KB)

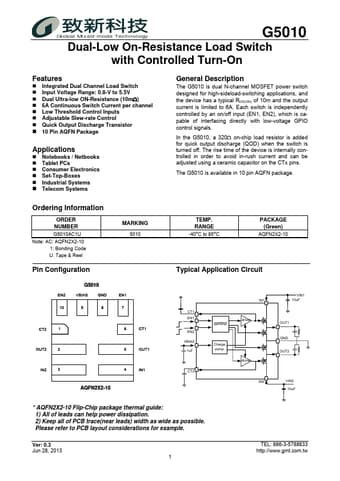

Preview of G5010 PDF

Datasheet Details

Part number:

G5010

Manufacturer:

Global Mixed-mode Technology

File Size:

68.21 KB

Description:

Dual-low on-resistance load switch.
