G501DS, G501VS, GLASS PASSIVATED RECTIFIERS

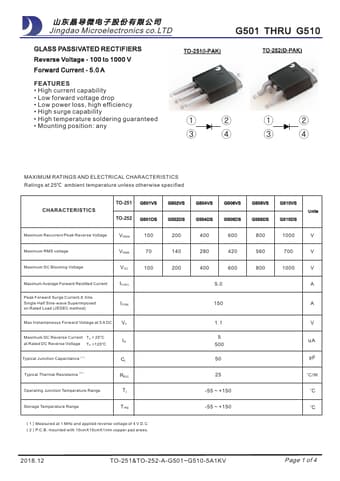

Jingdao Microelectronics co.LTD GLASS PASSIVATED RECTIFIERS Reverse Voltage - 100 to 1000 V Forward Current - 5.0 A .

G501VS-Jingdao.pdf

G501DS Datasheet Preview — This datasheet PDF includes multiple part numbers: G501DS, G501VS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G501DS, G501VS

Manufacturer:

Jingdao

File Size:

262.14 KB

Description:

GLASS PASSIVATED RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: G501DS, G501VS.
Please refer to the document for exact specifications by model.

Features

* High current capability
* Low forward voltage drop
* Low power loss, high efficiency
* High surge capability
* High temperature soldering guaranteed
* Mounting position: any ① ③ G501 THRU G510 ② ①② ④ ③④ MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTI
