G5616 - Complete DDR / DDRII and DDRIII Memory Solution Synchronous Buck PWM Controller

Product Overview

Global Mixed-mode Technology

📥 Download Datasheet

G5616 Complete DDR / DDRII and DDRIII Memory Solution Synchronous Buck PWM Controller by Global Mixed-mode Technology - Datasheet Preview — Datasheet preview – G5616

Datasheet Details

Part number	G5616
Manufacturer	Global Mixed-mode Technology
File Size	78.55 KB
Description	Complete DDR / DDRII and DDRIII Memory Solution Synchronous Buck PWM Controller
Datasheet	G5616 Datasheet
Note	This datasheet PDF includes multiple part numbers: G5616, G5616-GlobalMixed. Please refer to the document for exact specifications by model.

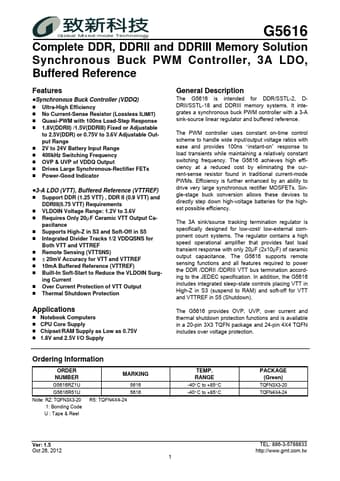

Additional preview pages of the G5616 datasheet.

Product details

Description

The G5616 is intended for DDR/SSTL-2, DDRII/SSTL-18 and DDRIII memory systems.

Features

Synchronous Buck Controller (VDDQ).
Ultra-High Efficiency.
No Current-Sense Resistor (Lossless ILIMIT).
Quasi-PWM with 100ns Load-Step Response.
1.8V(DDRII) /1.5V(DDRIII) Fixed or Adjustable to 2.5V(DDR) or 0.75V to 3.6V Adjustable Output Range.
2V to 24V Battery Input Range.
400kHz Switching Frequency.
OVP & UVP of VDDQ Output.
Drives Large Synchronous-Rectifier FETs.
Power-Good Indicator.
3-A LDO.
