G705

Resistor-Programmable SOT Temperature Switches

G705 Features

* ±0.5°C Typical Threshold Accuracy

* ±3.5°C (max) Threshold Accuracy (0°C to +125°C)

* ±3°C Threshold Accuracy (60°C to +100°C)

* Temperature Threshold Set by a 1% External Resistor

* Low 33µA Supply Current

* Open-Drain Active Low Output Stage

G705 General Description

The G705 are fully integrated, resistor programmable temperature switches with thresholds set by an external resistor. They require only one external resistor to set the temperature threshold within a wide 0°C to +125°C temperature range. The G705 provides an open-drain, active low output. These swi.

G705 Datasheet (77.71 KB)

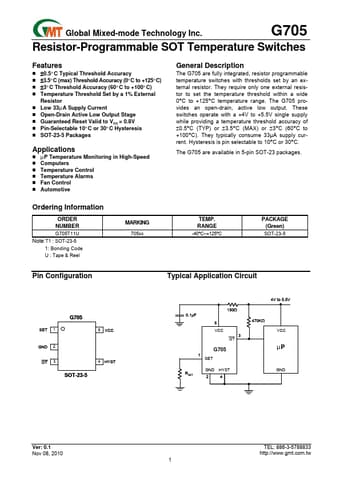

Preview of G705 PDF

Datasheet Details

Part number:

G705

Manufacturer:

Global Mixed-mode Technology

File Size:

77.71 KB

Description:

Resistor-programmable sot temperature switches.
