G709 Datasheet - Global Mixed-mode Technology

G709 - Resistor-Programmable SOT Temperature Switches

The G709/G710 are fully integrated, resistor programmable temperature switches with thresholds set by an external resistor.

They require only one external resistor to set the temperature threshold within a wide 0°C to +125°C temperature range.

The G709/G710 provides an open-drain, active low output.

G709 Features

* ±0.5°C Typical Threshold Accuracy ±3.5°C (max) Threshold Accuracy (0°C to +125°C) Temperature Threshold Set by a 1% External Resistor Low 33µA Supply Current Open-Drain Active Low Output Stage Guaranteed Reset Valid to VCC = 0.8V Pin-Selectable 2°C or 10°C Hysteresis SOT-23-5, SOT-23-6, TDFN2X2-8 an

G709-GlobalMixedmodeTechnology.pdf

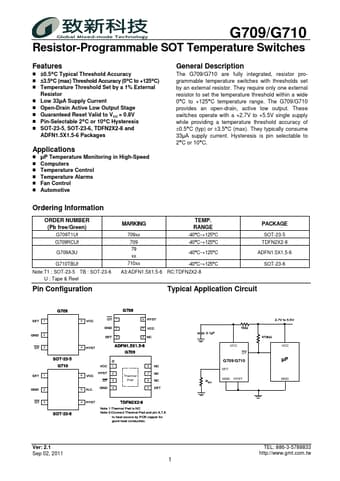

Preview of G709 PDF
G709 Datasheet Preview Page 2 G709 Datasheet Preview Page 3

Datasheet Details

Part number:

G709

Manufacturer:

Global Mixed-mode Technology

File Size:

731.49 KB

Description:

Resistor-programmable sot temperature switches.
