G766

Remote Temperature Sensor

G766 Features

* Single Channel: Measures Remote CPU Temperature

* No Calibration Required

* SMBus 2-Wire Serial Interface

* Programmable Under/Overtemperature Alarms

* Supports SMBus Alert Response

* Accuracy: ±3°C (+60°C to +100°C, remote)

* 3µA (typ) Stand

G766 General Description

The G766 is a precise digital thermometer that reports the temperature of a remote sensor. The remote sensor is a diode-connected transistor typically a low-cost, easily mounted 2N3904 NPN type-that replace conventional thermistors or thermocouples. Remote accuracy is ±3°C for multiple transist.

G766 Datasheet (248.28 KB)

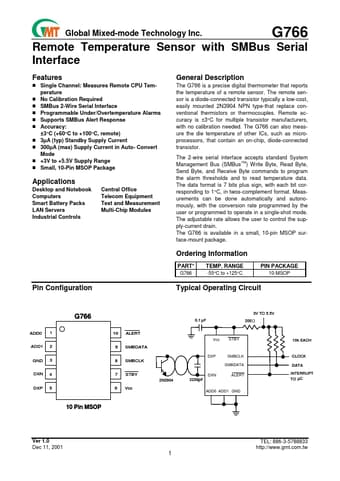

Preview of G766 PDF

Datasheet Details

Part number:

G766

Manufacturer:

Global Mixed-mode Technology

File Size:

248.28 KB

Description:

Remote temperature sensor.
