GSDSBAT42W - Fast Switching Schottky Barrier Diodes

Product Overview

Globaltech

📥 Download Datasheet

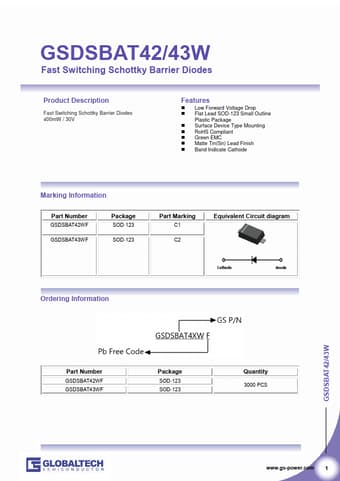

GSDSBAT42W Fast Switching Schottky Barrier Diodes by Globaltech - Datasheet Preview — Datasheet preview – GSDSBAT42W

Datasheet Details

Part number	GSDSBAT42W
Manufacturer	Globaltech
File Size	421.73 KB
Description	Fast Switching Schottky Barrier Diodes
Datasheet	GSDSBAT42W Datasheet
Additional preview pages of the GSDSBAT42W datasheet.

Product details

Description

Fast Switching Schottky Barrier Diodes 400mW / 30V

Features

Low Forward Voltage Drop.
Flat Lead SOD-123 Small Outline Plastic Package.
Surface Device Type Mounting.
RoHS Compliant.
Green EMC.
Matte Tin(Sn) Lead Finish.
Band Indicate Cathode Marking Information Part Number GSDSBAT42WF GSDSBAT43WF Package SOD-123 SOD-123 Part Marking C1 C2 Equivalent Circuit diagram Ordering Information Part Number GSDSBAT42WF GSDSBAT43WF Package SOD-123 SOD-123 Quantity 3000 PCS GSDSBAT42/43W www. gs-power. com 1 Absolute Maxi.
