HCD332 Datasheet - Golledge Electronics

HCD332 OCXO HCMOS OUTPUT STRATUM

5V OCXO HCMOS Output Stratum 3e Specifications HCD332 Product HCD332 Parameters Frequency range: 5.0 ~ 50.0MHz (8.1920, 16.3840 & 19.440MHz std) Frequency stability: ±1x10-9 / day after 30 days ±1x10-7 / year max ±1x10-8 per 5% change in VDD 36.10 (max) 27.20 (max) Option Codes ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ˿ ࡯ ࡯ ࡯ Temperature stability: ±3x10-8 over 0 to +70°C Overall stability: ±4.6x10-6 max (20yrs, all causes, as per Stratum 3e) Operating temperature range: 0 to +70°C Other options from -40°C Storage t.

HCD332 Features

* ➠ ➠ ➠ ➠ ➠ ➠ Stratum 3 & 3e compliant 5V supply Low height compact package Standard European IEC CO-08 pin-out Cost effective Custom options available Vibration: IEC 68-2-06 Test Fc 10-55Hz, 1.5mm. 55-500Hz, 10G ࡯ Standard. ˿ Optional - Please specify required code(s) when ordering Ordering Info

HCD332_GolledgeElectronics.pdf

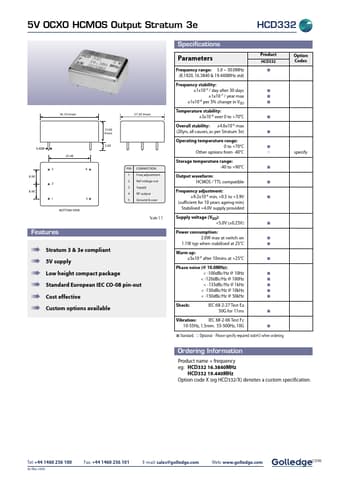

Preview of HCD332 PDF

Datasheet Details

Part number:

HCD332

Manufacturer:

Golledge Electronics

File Size:

63.96 KB

Description:

Ocxo hcmos output stratum.
