BZX85-Y3V9, BZX85-Y2V7 1300mW Zener Diodes

Goodark

Description

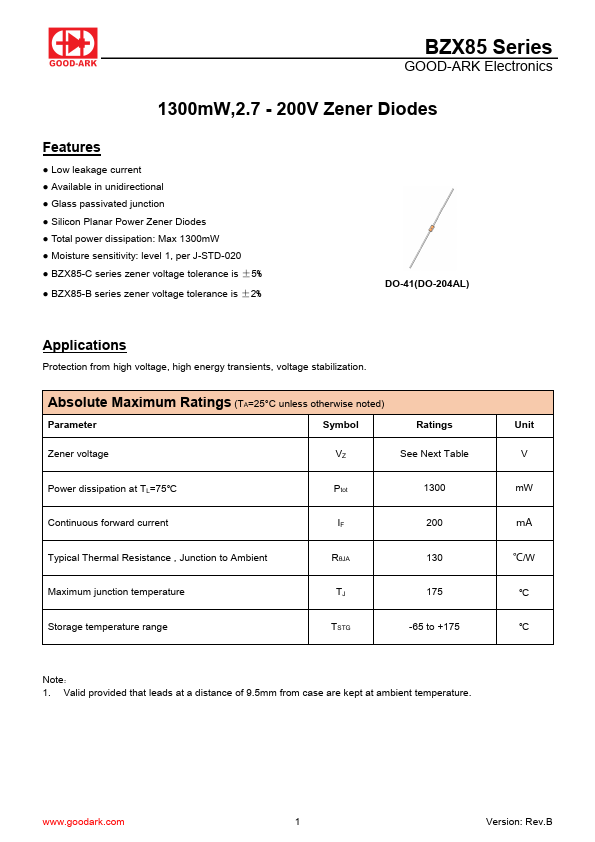

BZX85 Series GOOD-ARK Electronics 1300mW,2.7 - 200V Zener Diodes .

📥 Download Datasheet

BZX85-Y3V9 Datasheet Preview — This datasheet PDF includes multiple part numbers: BZX85-Y3V9, BZX85-Y2V7. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BZX85-Y3V9, BZX85-Y2V7
Manufacturer: Goodark
File Size: 912.59 KB
Datasheet: BZX85-Y2V7-Goodark.pdf
Description: 1300mW Zener Diodes
Note: This datasheet PDF includes multiple part numbers: BZX85-Y3V9, BZX85-Y2V7.
Please refer to the document for exact specifications by model.

Features

* Low leakage current
* Available in unidirectional
* Glass passivated junction
* Silicon Planar Power Zener Diodes
* Total power dissipation: Max 1300mW
* Moisture sensitivity: level 1, per J-STD-020
* BZX85-C series zener voltage tolerance is ±5%
* BZX85-B series ze

Applications

* Protection from high voltage, high energy transients, voltage stabilization. Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Symbol Ratings Zener voltage VZ See Next Table Power dissipation at TL=75℃ Ptot 1300 Continuous forward current IF 200 Typical Thermal Resist
